【Feed size】: 35-60mm
【Production capacity】: 12-360t/h
【Application】: all kinds of rock, abrasives, refractories, cement clinker, quartz, iron ore, concrete aggregates.

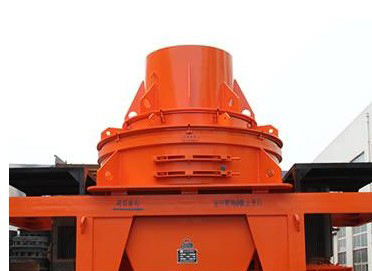

【Introduction】: impact crusher, also known as Sand Maker, is the introduction of the U.S. Barmac company famous "rock stone" crusher principle and technology, combined with sand production aspects of the actual situation, developed with the domestic and international , the leading level of efficient crushing equipment. It is widely used in a variety of rock, abrasives, refractories.

Impact crusher, also known as Sand Maker, is the introduction of the U.S. Barmac's renowned "rock stone" crusher principle and technology, combined with sand production aspects of the actual situation, developed with domestic and international advanced level efficient crushing equipment. It is widely used in a variety of rock, abrasives, refractories, cement clinker, quartz, iron ore, concrete aggregate and other hard, brittle materials in the debris, fine (sand system). For construction sand, gravel roads are particularly suitable.

HX vertical impact crusher from the feed, sub-feeders, eddy crushing chamber, impeller experience, spindle assembly, gear and motor base in seven parts.

1, This machine is a new development in the nineties, chippings, and it is currently the world's widely used to replace cone crusher, roller machine, Ball grinder models.
2, the structure is novel, unique, smooth operation.
3, the energy consumption, high yield, large crushing ratio.
4, the devices are small, easy to operate, easy installation and maintenance.
5, with a shaping function, the product was cubic shape, packing density.
6, the production process, the stones can be formed to protect the bottom, the body no wear and durability.
7, a small amount of wear parts with extra hard wear-resistant material made of small size, light weight, easy replacement of parts.

Material from the hopper into the crusher, the sub-feeder the material into two parts, the middle part of the sub-feeder into the high-speed rotation of the impeller, the impeller being rapidly accelerated up to several hundred times its acceleration of gravity, then to 60-70 m / s speed from three uniform impeller flow channel within the projectile out, first with the sub-feeder four weeks from the closing down part of the material impact crusher, and then with the impact of vortex cavity lining materials on the branch, by material lining rebound, oblique impact to the whirl chamber at the top, but also to change its direction of motion, deflected downward movement, emitted from the impeller material to form a continuous material curtain. Such a material whirl crushing chamber by two or even several chances impact, friction and grinding crushing effect. Material was broken by the lower row of the discharge port. And screening system to form a closed loop, three general circulation materials can be broken into 20 mesh or less.

In the crushing process, the material self mutual impact crusher, not in direct contact with the metal element, but with the lining material occurs impact, friction and grinding, which reduces the angle of pollution, prolonged mechanical wear time.Whirl chamber airflow from circulating inside cleverly eliminates dust pollution.
