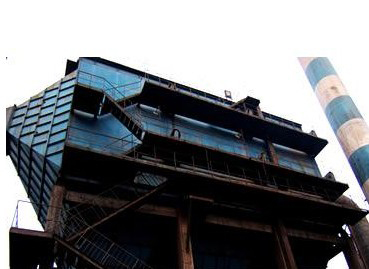

Electrostatic dust-precipitator

【Features】: When the input high voltage direct current between the poles of the electrode space, resulting anions and cations, and the role of the exhaust gas through the particle surface electrostatic field.
【Production capacity】 : 37000-378000m3 / h
【Technological advantage】 : electrostatic precipitator dust removal equipment compared with other, less energy consumption, high efficiency dust.
【Introduction】: electrostatic precipitator power from the control box, step-up transformer and rectifier components. Power supply output voltage level on the collection efficiency is also greatly affected. Therefore, the electrostatic precipitator operating voltage required to maintain work at 40-75KV 100KV and even more.

Electrostatic precipitator power supply from the control box, step-up transformer and rectifier components. Power supply output voltage level on the collection efficiency is also greatly affected.Therefore, the electrostatic precipitator operating voltage required to maintain 40-75KV 100KV and even more work.

Features

Electrostatic precipitator dust removal equipment compared with other, less energy consumption, dust, high efficiency, and can be used for flue gas temperature, high pressure situations. Practice shows that the greater the amount of flue gas treatment, the use of electrostatic precipitators more economic investment and operating costs.

Work principle

It mainly depends on the purification of the discharge electrode and the working electrode precipitated these two systems to complete. When a bipolar high-voltage DC input between the electrodes when the space around the anion and cation, and the electrostatic field acting on the particle surface of the exhaust gas, the electric force of the electrode of opposite polarity to its movement, and deposited on the electrode, to close Dust purposes. Bipolar systems, they are rapping device, when the rapping hammer beating bipolar device periodically, adhesion on which dust is shaken off, falling into the lower part of the hopper through the ash discharge device from the plane.

Technical parameters

Specification	Effective cross-sectional area	Flow rate (m³ / h)	Maximum working temperature (℃)	Pressure (Pa)	Speed of Electric wind (m / s)	Design Efficiency	Inlet dust concentration (g / Nm ³)	Outlet dust concentration (g / Nm ³)	Frictionloss (Pa)
15-III	15	37000	400	6000	0.7-0.9	≥ 99.9	<500	<50mg	<200
20-III	20	51000	400	6000	0.7-0.9	≥ 99.9	<500	<50mg	<200
30-III	30	756000	400	6000	0.7-0.9	≥ 99.9	<500	<50mg	<200
40-III	40	100000	400	6000	0.7-0.9	≥ 99.9	<500	<50mg	<200
50-III	50	126000	400	6000	0.7-0.9	≥ 99.9	<500	<50mg	<200
60-III	60	152000	400	6000	0.7-0.9	≥ 99.9	<500	<50mg	<200
70-III	4	177000	400	6000	0.7-0.9	≥ 99.9	<500	<50mg	<200
80-III	08	210000	400	6000	0.7-0.9	≥ 99.9	<500	<50mg	<200
90-III	09	230000	400	6000	0.7-0.9	≥ 99.9	<500	<50mg	<200
100-III	100	252000	400	6000	0.7-0.9	≥ 99.9	<500	<50mg	<200
110-III	110	280000	400	6000	0.7-0.9	≥ 99.9	<500	<50mg	<200
120-III	120	300000	400	6000	0.7-0.9	≥ 99.9	<500	<50mg	<200
140-III	140	353000	400	6000	0.7-0.9	≥ 99.9	<500	<50mg	<200
150-III	150	378000	400	6000	0.7-0.9	≥ 99.9	<500	<50mg	<200
