【Sink length】: ≤3000-14300mm
【Diameter of screw】: 300-3000mm
【Application】: Widely used in concentrator with ball mills closed circuits Cheng shunt mineral sands, or gravity concentrator to grading ore and fine mud.

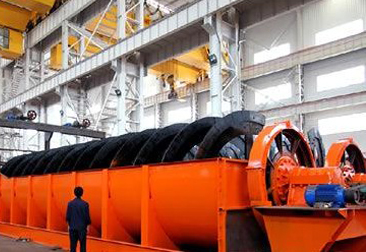

【Introduction】: This Classifier is widely used in the concentrator with ball mills closed circuits Cheng shunt mineral sands, or gravity concentrator in grading ore and fine mud, metal beneficiation process for the pulp particle size grading, and washing operations in the mud, dehydration and other operations. The Classifier has a simple structure, reliable operation, easy operation.

Classifier Scope: Classifier mainly high weir single and double helices, sinking single and double helices four kinds of Classifier. The Classifier is widely used in the concentrator with ball mills closed circuits Cheng shunt mineral sands, or gravity concentrator in grading ore and fine mud, metal beneficiation process for the pulp particle size grading, and washing operations The mud, dehydration and other operations.The Classifier has a simple structure, reliable operation, easy to operate.
Classifier structure: Classifier primarily by the transmission means, spirochetes, the tank, the lifting mechanism, the lower bearing (bearing) and of discharge valve.

The Classifier is widely used in the concentrator with ball mills closed circuits Cheng shunt mineral sands, or gravity concentrator in grading ore and fine mud, metal beneficiation process for the pulp particle size grading, and washing operations The mud, dehydration and other operations. The Classifier has a simple structure, reliable operation, easy to operate.

Classifier Work principle: Classifier is by means of solid particles of different sizes, the proportion of different settling velocity in liquid, different principles, the fine ore particles floating in the water to overflow out of coarse mineral particles sink to the bottom. Discharged from the screw into the upper part, to a hierarchical classification of mechanical equipment, can mill to grind the material powder level in the filter, and then use the coarse material helical screw rotary vane into the mill feed, the filter out the fine material is discharged from the overflow pipe. The machine base is made of channel steel body with steel plates welded together. Into the head of the screw shaft, shaft, using pig iron, wear-resistant and durable, lifting devices of electric and manual.
